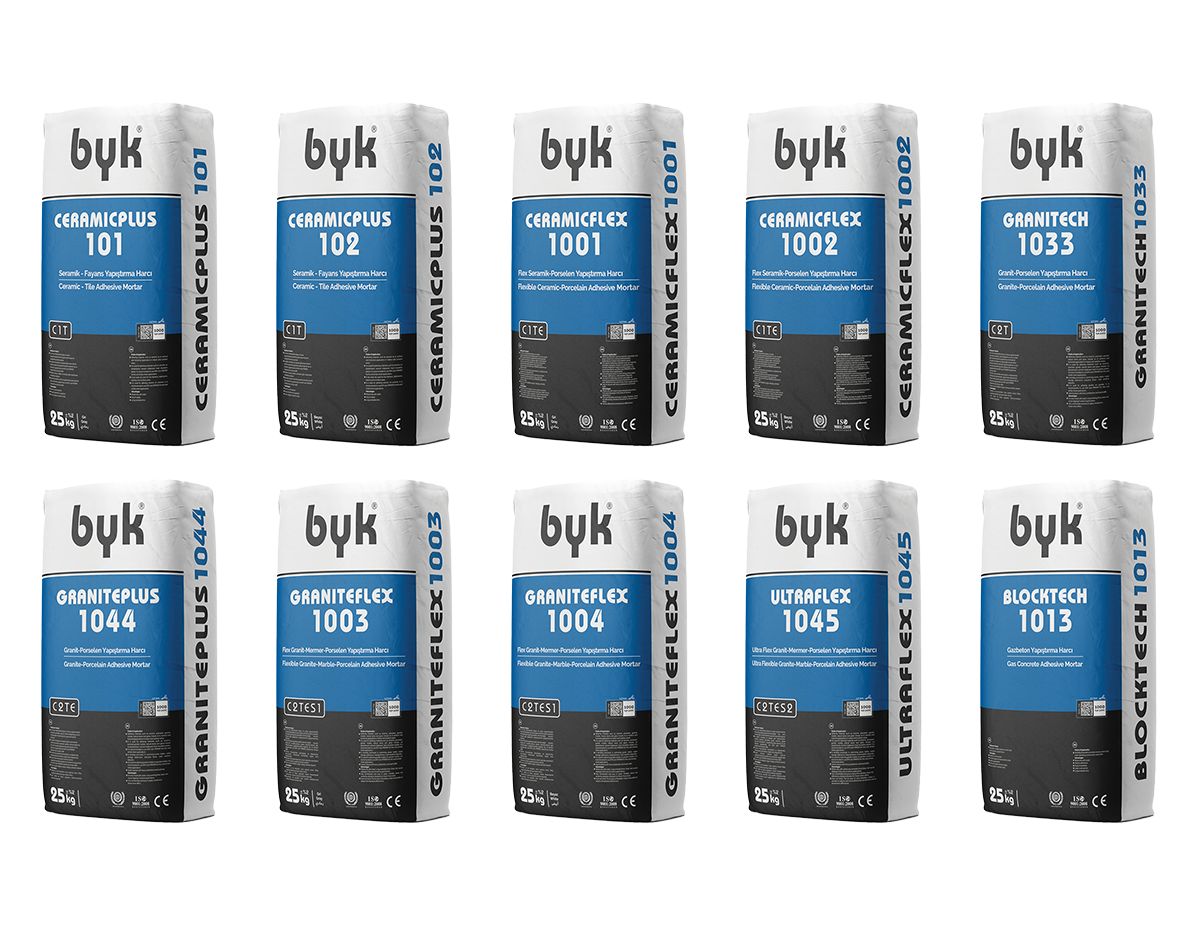

BYK 101 CERAMICPLUS
BYK 101 CERAMICPLUS is a cement-based, ceramic adhesive material with reduced slip feature,
that can be used both indoors and outdoors, horizontally and vertically
In compliance with TS EN 12004 – C1T standards.
C1: Cement Based, Normal Curing Adhesive
T: Reduced Slip Feature
Fields of Application
• Adhering materials such as ceramic to in vertical and horizontal applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic on plasterboard, cement chipboard, heat insulation plates. It is

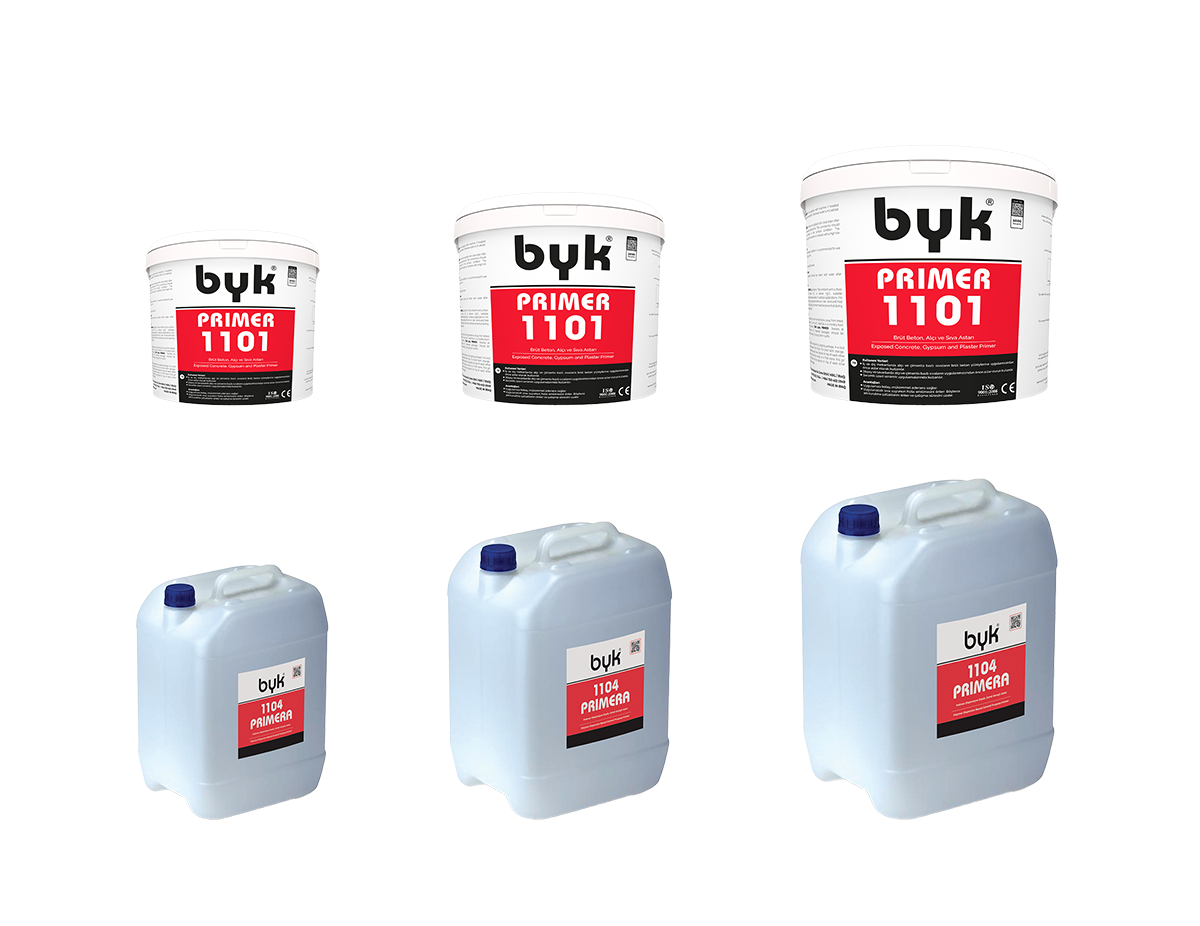

recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• It can easily be used for the kitchens, bathrooms, balcony and corridors areas.
• It is used for adhering ceramic on ceramic. It is recommended to use BYK 1101 PRIMER for this and similar sheet
applications.
Advantages
• Mixed only with water.Long workable time,
• Very comfortable and easy to apply
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a# ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 101 CERAMICPLUS bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous
with 400 - 600 rpm mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is
mixed again for 1 minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 101 CERAMICPLUS approximately 6,50-7,50 lt of water should be used.

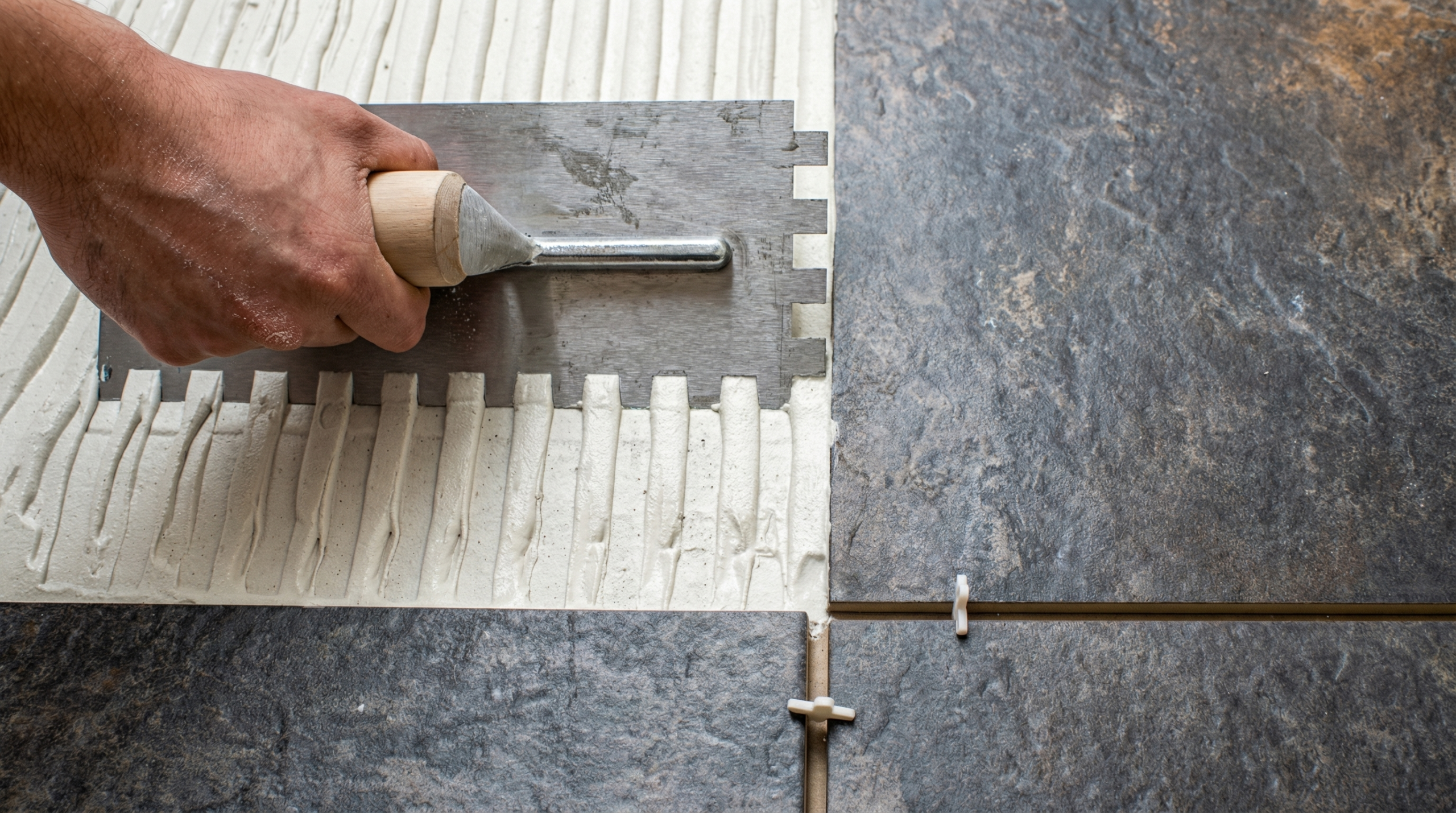

Application
Ceramic must be in full contact with the adhesive mortar. In order to obtain a better adhesion surface, the mortar should be
applied with the toothed part of the trowel selected in accordance with the ceramic size after spreading on the surface with
the straight part of the trowel. The application is completed by leaving the recommended joint gap according to the

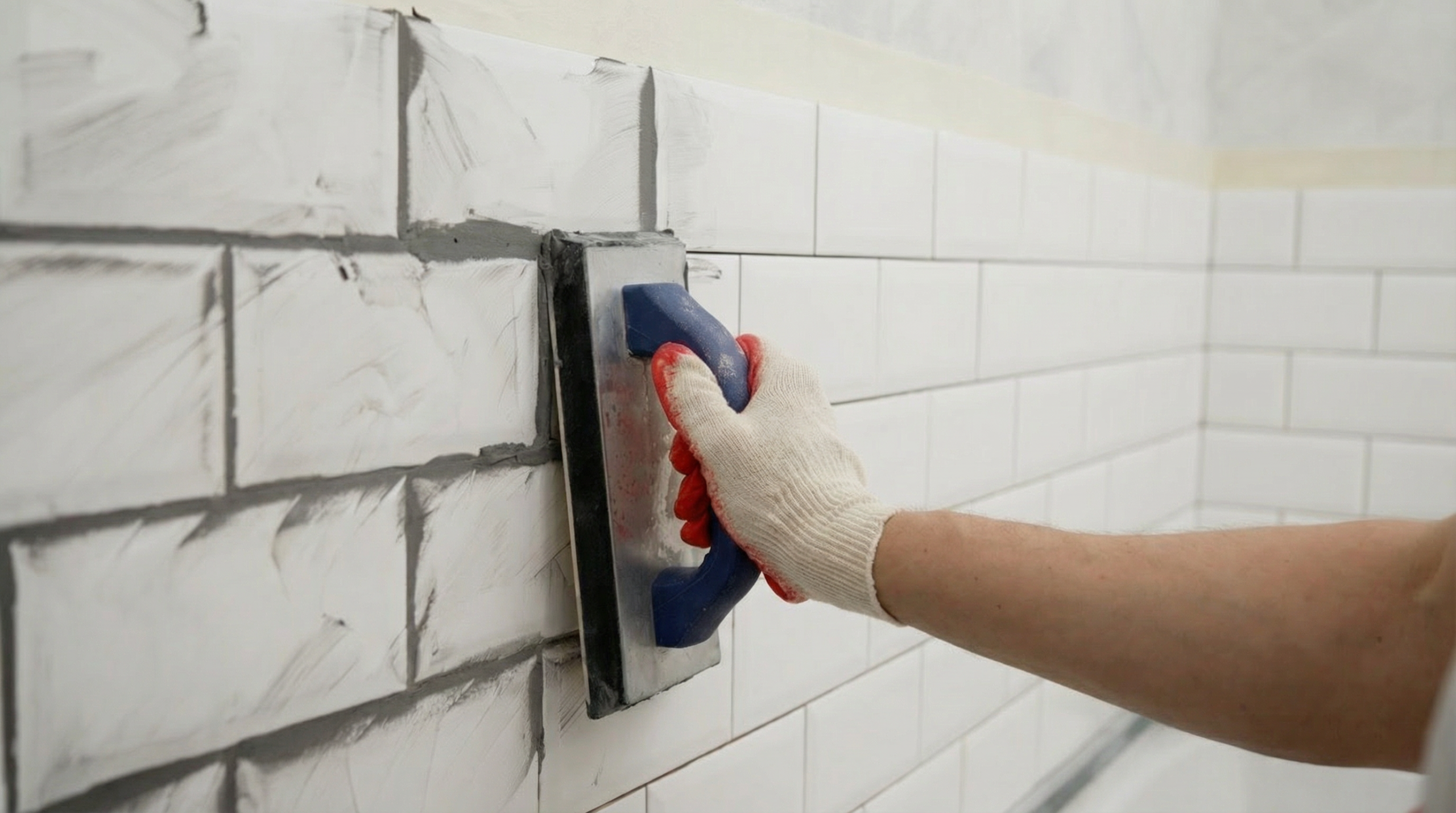

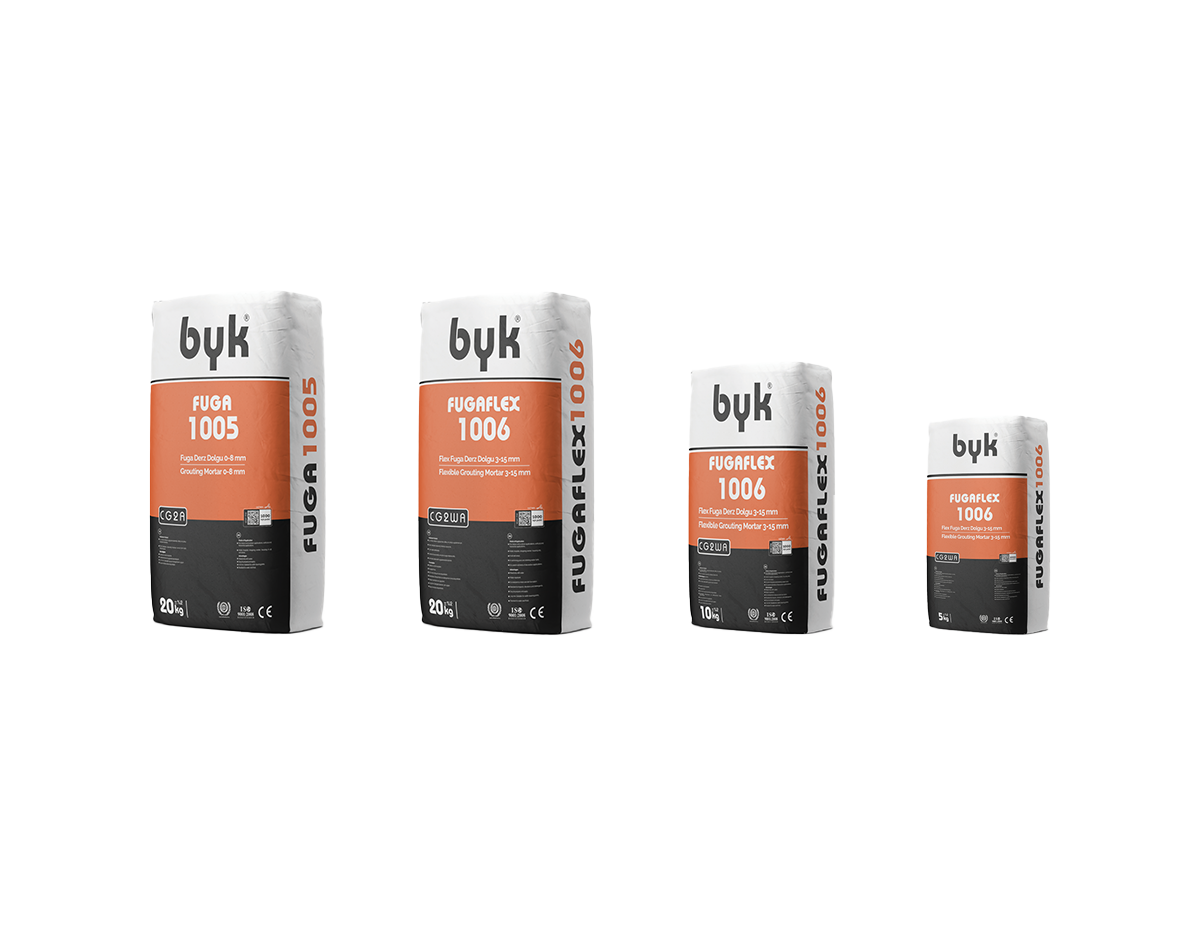

appropriate ceramic size. For filling the left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be
used to fill the cleaned joint spacing. Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the ceramic on the adhesive, the open pause time must be checked. Finger is pressed on the
adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the ceramics is continued.
If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed. In this case, a new
adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 101 CERAMICPLUS application, suitable temperatures should be expected if ambient and
surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are a# ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e# ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a# ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 102 CERAMICPLUS
BYK 102 CERAMICPLUS is a cement-based, ceramic adhesive material with reduced slip feature,
that can be used both indoors and outdoors, horizontally and vertically
In compliance with TS EN 12004 – C1T standards.
C1: Cement Based, Normal Curing Adhesive
T: Reduced Slip Feature
Fields of Application
• Adhering materials such as ceramic to in vertical and horizontal applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic on plasterboard, cement chipboard, heat insulation plates. It is
recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• It can easily be used for the kitchens, bathrooms, balcony and corridors areas.
• It is used for adhering ceramic on ceramic. It is recommended to use BYK 1101 PRIMER for this and similar sheet
applications.
Advantages
• Mixed only with water.Long workable time,
• Very comfortable and easy to apply
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a# ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 102 CERAMICPLUS bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous
with 400 - 600 rpm mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is
mixed again for 1 minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 102 CERAMICPLUS approximately 6,50-7,50 lt of water should be used.
Application
Ceramic must be in full contact with the adhesive mortar. In order to obtain a better adhesion surface, the mortar should be
applied with the toothed part of the trowel selected in accordance with the ceramic size after spreading on the surface with
the straight part of the trowel. The application is completed by leaving the recommended joint gap according to the
appropriate ceramic size. For filling the left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be
used to fill the cleaned joint spacing. Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the ceramic on the adhesive, the open pause time must be checked. Finger is pressed on the
adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the ceramics is continued.
If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed. In this case, a new
adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 102 CERAMICPLUS application, suitable temperatures should be expected if ambient and
surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are a# ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e# ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a# ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1001 CERAMICFLEX
BYK 1001 CERAMICFLEX is a cement and polymer based, flexible bonding material for materials
such as ceramic, porcelain and glass mosaic with high adhesion performance, suitable for all kinds of weather conditions.
In compliance with TS EN 12004 – C1TE standards.
C1: Cemnt Based Normal Curing Adhesive
T: Reduced Slip Feature
E: Open Waiting Time Extended
Fields of Application
• Adhering materials such as ceramic, porcelain and glass mosaic to in vertical and horizontal applications in indoor and
outdoor areas,
• It is used for adhering materials such as ceramic, porcelain and glass mosaic on plasterboard, cement chipboard, heat
insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools,water storage, bathrooms, cold weather deposits,
• It is used for adhering ceramic porcelain on ceramic porcelain. It is recommended to use BYK 1101 PRIMER for this and
similar sheet applications.
• Used in places with heavy pedestrian and load traffic.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply, Flexible, does not affected by vibrations, Resistant to freeze-thaw effect,
• Not be a" ected by temperature differences.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1001 CERAMICFLEX bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous
with 400 - 600 rpm mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is
mixed again for 1 minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1001 CERAMICFLEX approximately 6,50-7,50 lt of water should be used.
Application
Ceramic and porcelain must be in full contact with the adhesive mortar. In order to obtain a better adhesion surface, the
mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic and porcelain size
after spreading on the surface with the straight part of the trowel. The application is completed by leaving the recommended
joint gap according to the appropriate ceramic and porcelain size. For filling the left joint gaps. BYK 1005 FUGA & BYK 1006
FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing. Joint application can be completed after
about 24 hours.
Applicability Test
For the applicability of the ceramic and porcelain on the adhesive, the open pause time must be checked. Finger is pressed
on the adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the ceramics and
porcelains is continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has
passed. In this case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1001 CERAMICFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are affected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1002 CERAMICFLEX
BYK 1002 CERAMICFLEX is a cement and polymer based, flexible bonding material for materials
such as ceramic, porcelain and glass mosaic with high adhesion performance, suitable for all kinds of weather conditions.
In compliance with TS EN 12004 – C1TE standards.
C1: Cemnt Based Normal Curing Adhesive
T: Reduced Slip Feature
E: Open Waiting Time Extended
Fields of Application
• Adhering materials such as ceramic, porcelain and glass mosaic to in vertical and horizontal applications in indoor and
outdoor areas,
• It is used for adhering materials such as ceramic, porcelain and glass mosaic on plasterboard, cement chipboard, heat
insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools,water storage, bathrooms, cold weather deposits,
• It is used for adhering ceramic porcelain on ceramic porcelain. It is recommended to use BYK 1101 PRIMER for this and
similar sheet applications.
• Used in places with heavy pedestrian and load traffic.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply, Flexible, does not affected by vibrations, Resistant to freeze-thaw effect,
• Not be a" ected by temperature differences.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1002 CERAMICFLEX bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous
with 400 - 600 rpm mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is
mixed again for 1 minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1002 CERAMICFLEX approximately 6,50-7,50 lt of water should be used.
Application
Ceramic and porcelain must be in full contact with the adhesive mortar. In order to obtain a better adhesion surface, the
mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic and porcelain size
after spreading on the surface with the straight part of the trowel. The application is completed by leaving the recommended
joint gap according to the appropriate ceramic and porcelain size. For filling the left joint gaps. BYK 1005 FUGA & BYK 1006
FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing. Joint application can be completed after
about 24 hours.
Applicability Test
For the applicability of the ceramic and porcelain on the adhesive, the open pause time must be checked. Finger is pressed
on the adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the ceramics and
porcelains is continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has
passed. In this case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1002 CERAMICFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are affected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1044 GRANITEPLUS
BYK 1044 GRANITEPLUS is a cement based, bonding material for materials such as ceramic, porcelain,granite, marble, natural stone and glass mosaic with high adhesion performance, suitable for all kinds of weather conditions.
In compliance with TS EN 12004 - C2TE standards.
C2 : Cement Based, Additional Features Improved, High Performance
T : Reduced Slip Feature
E : Open Waiting Time Extended
Fields of Application
• Adhering materials such as ceramic, porcelain,granite, marble, natural stone and glass mosaic to in vertical and horizontal
applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic, porcelain,granite, marble, natural stone and glass mosaic on plasterboard,
cement chipboard, heat insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools, baths, water storage, bathrooms, industrial floors, cold weather deposits,
• It is used for adhering granite marble on granite marble. It is recommended to use BYK 1101 PRIMER for this and similar
sheet applications.
• Used in places with heavy pedestrian and load traffic.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply ,Resistant to freeze-thaw e" ect,
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions, surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER roller before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1044 GRANITEPLUS
bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm
mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1
minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1044 GRANITEPLUS approximately 6,50-7,50 lt of water should be used.
Application
Ceramic, porcelain, granite and marble must be in full contact with the adhesive mortar. In order to obtain a better adhesion
surface, the mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic, porcelain,
granite and marble size after spreading on the surface with the straight part of the trowel. The application is completed by
leaving the recommended joint gap according to the appropriate ceramic, porcelain, granite and marble size. For filling the
left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing.
Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the granite or marble on the adhesive, the open pause time must be checked. Finger is pressed on the
adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the granite or marble is
continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed. In this
case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the granite or marble to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with wat
Watch Points
• In BYK 1044 GRANITEPLUS application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperatu
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the method
of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1044 GRANITEPLUS
BYK 1044 GRANITEPLUS is a cement based, bonding material for materials such as ceramic, porcelain,granite, marble,
natural stone and glass mosaic with high adhesion performance, suitable for all kinds of weather conditions.
In compliance with TS EN 12004 - C2TE standards.
C2 : Cement Based, Additional Features Improved, High Performance
T : Reduced Slip Feature
E : Open Waiting Time Extended
Fields of Application
• Adhering materials such as ceramic, porcelain,granite, marble, natural stone and glass mosaic to in vertical and horizontal
applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic, porcelain,granite, marble, natural stone and glass mosaic on plasterboard,
cement chipboard, heat insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools, baths, water storage, bathrooms, industrial floors, cold weather deposits,
• It is used for adhering granite marble on granite marble. It is recommended to use BYK 1101 PRIMER for this and similar
sheet applications.
• Used in places with heavy pedestrian and load traffic.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply ,Resistant to freeze-thaw e" ect,
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions, surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER roller before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1044 GRANITEPLUS
bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm
mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1
minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1044 GRANITEPLUS approximately 6,50-7,50 lt of water should be used.
Application
Ceramic, porcelain, granite and marble must be in full contact with the adhesive mortar. In order to obtain a better adhesion
surface, the mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic, porcelain,
granite and marble size after spreading on the surface with the straight part of the trowel. The application is completed by
leaving the recommended joint gap according to the appropriate ceramic, porcelain, granite and marble size. For filling the
left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing.
Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the granite or marble on the adhesive, the open pause time must be checked. Finger is pressed on the
adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the granite or marble is
continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed. In this
case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the granite or marble to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with wat
Watch Points
• In BYK 1044 GRANITEPLUS application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperatu
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the method
of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1003 GRANITEFLEX
BYK 1003 GRANITEFLEX is a cement and polymer based, flexible bonding material for materials
such as ceramic, porcelain, granite, marble, natural stone and glass mosaic with high adhesion performance, suitable for all
kinds of weather conditions.
In compliance with TS EN 12004 - C2TE S1 standards.
C2: Cement Based, Additional Features Improved, High Performance
T : Reduced Slip Feature
E : Open Waiting Time Extended
S1: Flexible
Fields of Application
• Adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic to in vertical and horizontal
applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic on plasterboard,
cement chipboard, heat insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools, baths, water storage, bathrooms, industrial floors, cold weather deposits,
• It is used for adhering granite marble on granite marble. It is recommended to use BYK 1101 PRIMER for this and similar
sheet applications.
• Used in places with heavy pedestrian and load traffic.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply,Flexible, does not a" ected by vibrations,Resistant to freeze-thaw e" ect,
• Does not shrink,The S1 class of flexibility makes it possible to adapt to temperature di" erences.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions, surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER roller before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1003 GRANITEFLEX bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous
with 400 - 600 rpm mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is
mixed again for 1 minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1003 GRANITEFLEX approximately 6,50-7,50 lt of water should be used.
Application
Ceramic, porcelain, granite and marble must be in full contact with the adhesive mortar. In order to obtain a better adhesion
surface, the mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic, porcelain,
granite and marble size after spreading on the surface with the straight part of the trowel. The application is completed by
leaving the recommended joint gap according to the appropriate ceramic, porcelain, granite and marble size. For filling the
left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing.
Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the granite and marble on the adhesive, the open pause time must be checked. Finger is pressed on
the adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the granite and
marble is continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed.
In this case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1003 GRANITEFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
IIt is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1004 GRANITEFLEX
BYK 1004 GRANITEFLEX is a cement and polymer based, flexible bonding material for materials
such as ceramic, porcelain, granite, marble, natural stone and glass mosaic with high adhesion performance, suitable for all
kinds of weather conditions.
In compliance with TS EN 12004 - C2TE S1 standards.
C2: Cement Based, Additional Features Improved, High Performance
T : Reduced Slip Feature
E : Open Waiting Time Extended
S1: Flexible
Fields of Application
• Adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic to in vertical and horizontal
applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic on plasterboard,
cement chipboard, heat insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools, baths, water storage, bathrooms, industrial floors, cold weather deposits,
• It is used for adhering granite marble on granite marble. It is recommended to use BYK 1101 PRIMER for this and similar
sheet applications.
• Used in places with heavy pedestrian and load traffic.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply,Flexible, does not a" ected by vibrations,Resistant to freeze-thaw e" ect,
• Does not shrink,The S1 class of flexibility makes it possible to adapt to temperature di" erences.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions, surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER roller before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1004 GRANITEFLEX bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous
with 400 - 600 rpm mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is
mixed again for 1 minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1004 GRANITEFLEX approximately 6,50-7,50 lt of water should be used.
Application
Ceramic, porcelain, granite and marble must be in full contact with the adhesive mortar. In order to obtain a better adhesion
surface, the mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic, porcelain,
granite and marble size after spreading on the surface with the straight part of the trowel. The application is completed by
leaving the recommended joint gap according to the appropriate ceramic, porcelain, granite and marble size. For filling the
left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing.
Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the granite and marble on the adhesive, the open pause time must be checked. Finger is pressed on
the adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the granite and
marble is continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed.
In this case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1004 GRANITEFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in ceramic adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
IIt is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1045 ULTRAFLEX
BYK 1045 ULTRAFLEX is a cement and polymer based ultra flex adhesive mortar with reduced slip feature, long working
time, very flexible, high performance, suitable for all weather conditions, can be used both indoors and outdoors,
horizontally and vertically.
In compliance with TS EN 12004 - C2TES2 standards.
C2 : Cement Based, Additional Features Improved, High Performance
T : Reduced Slip Feature
E : Open Waiting Time Extended
S2 : Very Flexible
Fields of Application
• Adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic to in vertical and horizontal
applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic on plasterboard,
cement chipboard, heat insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools, baths, water storage, bathrooms, industrial floors, cold weather deposits,
• It is used for adhering granite marble on granite marble. It is recommended to use BYK 1101 PRIMER for this and similar
sheet applications.
• Used in places with heavy pedestrian and load tra! c.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply,Extra flexible, does not a" ected by vibrations,Resistant to freeze-thaw e" ect,
• Does not shrink,The S2 class of extra flexibility makes it possible to adapt to and not be a" ected by soil stresses due to
temperature di" erences.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1045 ULTRAFLEX bag
is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm mixing
drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1 minute and
made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1045 ULTRAFLEX Gray approximately 6,50-7,50 lt of water should be used.
Application
Ceramic, porcelain, granite and marble must be in full contact with the adhesive mortar. In order to obtain a better adhesion
surface, the mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic, porcelain,
granite and marble size after spreading on the surface with the straight part of the trowel. The application is completed by
leaving the recommended joint gap according to the appropriate ceramic, porcelain, granite and marble size. For filling the
left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing.
Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the granite and marble on the adhesive, the open pause time must be checked. Finger is pressed on
the adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the granite and marble
is continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed. In this
case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1045 ULTRAFLEX application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical knowledge.
BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results that may
occur because the product is used other than advised and/or out of instructions regarding the place and the method of use.
This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1045 ULTRAFLEX
BYK 1045 ULTRAFLEX is a cement and polymer based ultra flex adhesive mortar with reduced slip feature, long working
time, very flexible, high performance, suitable for all weather conditions, can be used both indoors and outdoors,
horizontally and vertically.
In compliance with TS EN 12004 - C2TES2 standards.
C2 : Cement Based, Additional Features Improved, High Performance
T : Reduced Slip Feature
E : Open Waiting Time Extended
S2 : Very Flexible
Fields of Application
• Adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic to in vertical and horizontal
applications in indoor and outdoor areas,
• It is used for adhering materials such as ceramic, porcelain, granite, marble, natural stone and glass mosaic on plasterboard,
cement chipboard, heat insulation plates. It is recommended to use BYK 1101 PRIMER for this and similar sheet applications.
• In bonding processes in swimming pools, baths, water storage, bathrooms, industrial floors, cold weather deposits,
• It is used for adhering granite marble on granite marble. It is recommended to use BYK 1101 PRIMER for this and similar
sheet applications.
• Used in places with heavy pedestrian and load tra! c.
Advantages
• Mixed only with water.Long workable time,Does not cause slippage in the case of vertical applications,
• Very comfortable and easy to apply,Extra flexible, does not a" ected by vibrations,Resistant to freeze-thaw e" ect,
• Does not shrink,The S2 class of extra flexibility makes it possible to adapt to and not be a" ected by soil stresses due to
temperature di" erences.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1045 ULTRAFLEX bag
is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm mixing
drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1 minute and
made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1045 ULTRAFLEX Gray approximately 6,50-7,50 lt of water should be used.
Application
Ceramic, porcelain, granite and marble must be in full contact with the adhesive mortar. In order to obtain a better adhesion
surface, the mortar should be applied with the toothed part of the trowel selected in accordance with the ceramic, porcelain,
granite and marble size after spreading on the surface with the straight part of the trowel. The application is completed by
leaving the recommended joint gap according to the appropriate ceramic, porcelain, granite and marble size. For filling the
left joint gaps. BYK 1005 FUGA & BYK 1006 FUGAFLEX Series joint fillings should be used to fill the cleaned joint spacing.
Joint application can be completed after about 24 hours.
Applicability Test
For the applicability of the granite and marble on the adhesive, the open pause time must be checked. Finger is pressed on
the adhesive on the applied surface. If the adhesive is contaminated with the finger, the application of the granite and marble
is continued. If the adhesive is not contaminated with fingerprints, the application period of the adhesive has passed. In this
case, a new adhesive must be applied which is etched from the adhesive surface.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1045 ULTRAFLEX application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical knowledge.
BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results that may
occur because the product is used other than advised and/or out of instructions regarding the place and the method of use.
This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1005 FUGA
BYK 1005 FUGA, is used in joints of materials such as cement-based ceramics, tiles and glass mosaics.
In compliance with TS EN 13888 – CG2A standards.
CG: Cement Based Grouting
2 : Additional Features Improved
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing, in all wet areas,
Advantages
• Mixed only with water.
• Easy to prepare and apply,
• 0-8 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su" cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1005 FUGA bag is opened slowly into
the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing drill. Mixed. The material should not
remain in the pellet. After resting the material for 3 minutes again 1 min. ready for application by mixing. Di# erent water ratios
and di# erent forms of mixing may cause unwanted colour differences.
Mixing Ratio
For 20 kg/1 bag of BYK 1005 FUGA approximately 6,00-6,50 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1005 FUGA application, suitable temperatures should be expected if ambient and surface temperature are below +
5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a# ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e# ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a# ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1006 FUGAFLEX WHITE
BYK 1006 FUGAFLEX, Cement and polymer based, flexible, water repellent, silicone added. It is used in the joints of
materials such as ceramic, porcelain, granite and marble and is not a! ected by temperature di! erences, water and vibration.
In compliance with TS EN 13888 – CG2WA standards.
CG : Cement Based Grouting
2 : Additional Features Improved
W : Reduced Water Absorption
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing etc.
• In all wet areas,
• In swimming pool and drinking water tank,
• It is used in all kinds of decorative applications.
Advantages
• Mixed only with water.
• Water repellent.
• It is resistant to mold and dirt formation.
• Resistant to impacts, vibrations and detergents.
• Easy to prepare and apply,
• 3-15 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su# cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1006, 1007, 1008, 1009, 1010, 2002
FUGAFLEX bag is opened slowly into the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing
drill. Mixed. The material should not remain in the pellet. After resting the material for 3 minutes again 1 min. ready for
application by mixing. Di! erent water ratios and di! erent forms of mixing may cause unwanted color di! erences.
Mixing Ratio
For 20 kg/1 bag of BYK 1006, 1007, 1008, 1009, 1010 FUGAFLEX approximately 6,00-6,50 lt of water should be used.
For 10 kg/1 bag of BYK 2002 FUGAFLEX approximately 3,00-3,25 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg – 10kg – 5 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1006, 1007, 1008, 1009, 1010, 2002 FUGAFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1007 FUGAFLEX BEIGE
BYK 1007 FUGAFLEX, Cement and polymer based, flexible, water repellent, silicone added. It is used in the joints of
materials such as ceramic, porcelain, granite and marble and is not a! ected by temperature di! erences, water and vibration.
In compliance with TS EN 13888 – CG2WA standards.
CG : Cement Based Grouting
2 : Additional Features Improved
W : Reduced Water Absorption
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing etc.
• In all wet areas,
• In swimming pool and drinking water tank,
• It is used in all kinds of decorative applications.
Advantages
• Mixed only with water.
• Water repellent.
• It is resistant to mold and dirt formation.
• Resistant to impacts, vibrations and detergents.
• Easy to prepare and apply,
• 3-15 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su# cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1006, 1007, 1008, 1009, 1010, 2002
FUGAFLEX bag is opened slowly into the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing
drill. Mixed. The material should not remain in the pellet. After resting the material for 3 minutes again 1 min. ready for
application by mixing. Di! erent water ratios and di! erent forms of mixing may cause unwanted color di! erences.
Mixing Ratio
For 20 kg/1 bag of BYK 1006, 1007, 1008, 1009, 1010 FUGAFLEX approximately 6,00-6,50 lt of water should be used.
For 10 kg/1 bag of BYK 2002 FUGAFLEX approximately 3,00-3,25 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg – 10kg – 5 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1006, 1007, 1008, 1009, 1010, 2002 FUGAFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1008 FUGAFLEX BROWN
BYK 1008 FUGAFLEX, Cement and polymer based, flexible, water repellent, silicone added. It is used in the joints of
materials such as ceramic, porcelain, granite and marble and is not a! ected by temperature di! erences, water and vibration.
In compliance with TS EN 13888 – CG2WA standards.
CG : Cement Based Grouting
2 : Additional Features Improved
W : Reduced Water Absorption
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing etc.
• In all wet areas,
• In swimming pool and drinking water tank,
• It is used in all kinds of decorative applications.
Advantages
• Mixed only with water.
• Water repellent.
• It is resistant to mold and dirt formation.
• Resistant to impacts, vibrations and detergents.
• Easy to prepare and apply,
• 3-15 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su# cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1006, 1007, 1008, 1009, 1010, 2002
FUGAFLEX bag is opened slowly into the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing
drill. Mixed. The material should not remain in the pellet. After resting the material for 3 minutes again 1 min. ready for
application by mixing. Di! erent water ratios and di! erent forms of mixing may cause unwanted color di! erences.
Mixing Ratio
For 20 kg/1 bag of BYK 1006, 1007, 1008, 1009, 1010 FUGAFLEX approximately 6,00-6,50 lt of water should be used.
For 10 kg/1 bag of BYK 2002 FUGAFLEX approximately 3,00-3,25 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg – 10kg – 5 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1006, 1007, 1008, 1009, 1010, 2002 FUGAFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1009 FUGAFLEX IVORY
BYK 1009 FUGAFLEX, Cement and polymer based, flexible, water repellent, silicone added. It is used in the joints of
materials such as ceramic, porcelain, granite and marble and is not a! ected by temperature di! erences, water and vibration.
In compliance with TS EN 13888 – CG2WA standards.
CG : Cement Based Grouting
2 : Additional Features Improved
W : Reduced Water Absorption
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing etc.
• In all wet areas,
• In swimming pool and drinking water tank,
• It is used in all kinds of decorative applications.
Advantages
• Mixed only with water.
• Water repellent.
• It is resistant to mold and dirt formation.
• Resistant to impacts, vibrations and detergents.
• Easy to prepare and apply,
• 3-15 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su# cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1006, 1007, 1008, 1009, 1010, 2002
FUGAFLEX bag is opened slowly into the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing
drill. Mixed. The material should not remain in the pellet. After resting the material for 3 minutes again 1 min. ready for
application by mixing. Di! erent water ratios and di! erent forms of mixing may cause unwanted color di! erences.
Mixing Ratio
For 20 kg/1 bag of BYK 1006, 1007, 1008, 1009, 1010 FUGAFLEX approximately 6,00-6,50 lt of water should be used.
For 10 kg/1 bag of BYK 2002 FUGAFLEX approximately 3,00-3,25 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg – 10kg – 5 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1006, 1007, 1008, 1009, 1010, 2002 FUGAFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1010 FUGAFLEX GRAY
BYK 1010 FUGAFLEX, Cement and polymer based, flexible, water repellent, silicone added. It is used in the joints of
materials such as ceramic, porcelain, granite and marble and is not a! ected by temperature di! erences, water and vibration.
In compliance with TS EN 13888 – CG2WA standards.
CG : Cement Based Grouting
2 : Additional Features Improved
W : Reduced Water Absorption
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing etc.
• In all wet areas,
• In swimming pool and drinking water tank,
• It is used in all kinds of decorative applications.
Advantages
• Mixed only with water.
• Water repellent.
• It is resistant to mold and dirt formation.
• Resistant to impacts, vibrations and detergents.
• Easy to prepare and apply,
• 3-15 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su# cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1006, 1007, 1008, 1009, 1010, 2002
FUGAFLEX bag is opened slowly into the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing
drill. Mixed. The material should not remain in the pellet. After resting the material for 3 minutes again 1 min. ready for
application by mixing. Di! erent water ratios and di! erent forms of mixing may cause unwanted color di! erences.
Mixing Ratio
For 20 kg/1 bag of BYK 1006, 1007, 1008, 1009, 1010 FUGAFLEX approximately 6,00-6,50 lt of water should be used.
For 10 kg/1 bag of BYK 2002 FUGAFLEX approximately 3,00-3,25 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg – 10kg – 5 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1006, 1007, 1008, 1009, 1010, 2002 FUGAFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 2002 FUGAFLEX BLACK
BYK 2002 FUGAFLEX, Cement and polymer based, flexible, water repellent, silicone added. It is used in the joints of
materials such as ceramic, porcelain, granite and marble and is not a! ected by temperature di! erences, water and vibration.
In compliance with TS EN 13888 – CG2WA standards.
CG : Cement Based Grouting
2 : Additional Features Improved
W : Reduced Water Absorption
A : High Wear Resistance
Fields of Application
• For indoor and outdoor applications, vertical and horizontal applications,
• Hotel, hospital, shopping center, housing etc.
• In all wet areas,
• In swimming pool and drinking water tank,
• It is used in all kinds of decorative applications.
Advantages
• Mixed only with water.
• Water repellent.
• It is resistant to mold and dirt formation.
• Resistant to impacts, vibrations and detergents.
• Easy to prepare and apply,
• 3-15 mm. Suitable for width-bearing joints,
• Resistant to water and frost,
Preparation of the Substrate
Making strength of adhesive should be expected before starting joint sealant application. 48 hours of waiting time is generally
su# cient. The grout in the joints should be cleaned and the joints should be emptied. Joints of highly absorbent materials must
be moistened before filling.
Mixing
Clean water as described on the package is put into a clean mixing bowl. When the BYK 1006, 1007, 1008, 1009, 1010, 2002
FUGAFLEX bag is opened slowly into the water, it is about 3 minutes until it is homogenous with the 400-600-speed mixing
drill. Mixed. The material should not remain in the pellet. After resting the material for 3 minutes again 1 min. ready for
application by mixing. Di! erent water ratios and di! erent forms of mixing may cause unwanted color di! erences.
Mixing Ratio
For 20 kg/1 bag of BYK 1006, 1007, 1008, 1009, 1010 FUGAFLEX approximately 6,00-6,50 lt of water should be used.
For 10 kg/1 bag of BYK 2002 FUGAFLEX approximately 3,00-3,25 lt of water should be used.
Application
The mixed material is placed with rubber trowel by making diagonal movements to the joints. In deep joints, the material
should first be expected to collapse and then this process should be repeated. In extreme hot weather and on absorbent
surfaces, the joint material may suddenly lose water and cause surface cracks. Therefore, the joints must be moistened with a
wet sponge before application. When the materials left to dry are pressed against finger pressure, the surfaces are finalized
with a wet sponge and the remaining material on the ceramic surface is cleaned.
Consumption
Variable
Consumption Table for Cement Based Grouting (Depth: 8 mm) Values are given in gr / m2.
Package
20 kg – 10kg – 5 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1006, 1007, 1008, 1009, 1010, 2002 FUGAFLEX application, suitable temperatures should be expected if ambient
and surface temperature are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy
weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in grouting mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1011 BOARDFLEX
BYK 1011 BOARDFLEX is a cement, polymer based and fiber reinforced EPS, XPS and thermal insulation board adhesive mortar.
Fields of Application
• It is used for bonding EPS, XPS and Thermal Insulation boards on concrete and plastered surface.
Advantages
• Mixed only with water.Long workable time,
• Does not slip,
• Provides excellent adhesion,
• Does not shrink,
• Resistant to freezing-thawing.
Preparation of the Substrate
The surfaces to be applied should be cleaned in situations that adversely a" ect rust, mold, oil, loose particles, dust and plaster
adhesion, and cracks and holes on the surface should be repaired with BYK 1014 REPAIR mortars. In hot weather conditions,
surfaces should definitely be moistened with water. Concrete surfaces should be applied with BYK 1101 PRIMER primer roller
before applying to concrete ceilings and walls.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1011 BOARDFLEX bag
is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm mixing
drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1 minute and
made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1011 BOARDFLEX approximately 6,00-7,50 lt of water should be used.
Application
Mortar is applied on the edges of the adhesion surfaces of the thermal insulation boards by means of a trowel in the form of
a strip, and pointly to the middle parts of the plates. BYK 1011 BOARDFLEX, min. It should have contacted 40%. When the
thermal insulation boards are adhered, the plates are pressed and put in place until the desired level and equality is achieved.
Depending on the ambient temperature, when the BYK 1011 BOARDFLEX receives a su# cient amount of receptacle, the
plates are mechanically attached to the surface with a suitable dowel. During the placement of the plates, the adhesive on
the surface of the boards should be prevented from drying out to form a levlm layer. On very smooth surfaces, BYK 1011
BOARDFLEX, 10mm x 10mm should be applied with the help of a notched trowel.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 4-6 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water
Watch Points
• In BYK 1011 BOARDFLEX application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in adhesive mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1012 BOARDPLAST
BYK 1012 BOARDPLAST is a cement, polymer based and fiber reinforced XPS,EPS and thermal insulation board plaster.
Fields of Application
• It is used for plastering XPS,EPS, Thermal Insulation boards and concrete surfaces. BYK 1101 primer should be used before
application on concrete surfaces.
Advantages
• Mixed only with water.
• Provides excellent adhesion.
• Fiber reinforcement prevents the formation of superficial cracks.
• Easy to prepare and apply.
• Long working time.
• Provides surface ready for application of paint or mineral plaster.
• Resistant to freeze-thaw e! ect.
Preparation of the Substrate
The surface of the thermal insulation plate to be applied must be dust free and free from debris. Also, the mechanical dicing
process has to be completed.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1012 BOARDPLAST
bag is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm
mixing drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1
minute and made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1012 BOARDPLAST approximately 6,00 – 7,00 lt of water should be used.
Application
The thermal insulation boards are mechanically anchored after being bonded with BYK 1011 BOARDFLEX. After a layer of
plaster is applied on the board, the plaster net is properly embedded in the 1st layer plaster. After the 1st floor is dried, the
second layer plaster is applied and the plaster process is completed. Application thickness can be 3-5 mm.
Consumption
Depending on the tooth thickness of the ceramic tile to be used, the consumption varies between 5-7 kg/m2.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1012 BOARDPLAST application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in plaster mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1013 BLOCKTECH
BYK 1013 BLOCKTECH is a cement and polymer based aerated concrete adhesive.
Fields of Application
•Bonding of aerated concrete and any other high water absorbing construction elements.
Advantages
• Mixed only with water
• Perfect adherence.
• Easily trowellable.
• Labor-cost e! ective
• Long workable time
Preparation of the Substrate
The surface of to be applied must be dust free and free from debris. Also, the mechanical dicing process has to be completed.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1013 BLOCKTECH bag
is opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm mixing
drill. There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1 minute and
made ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1013 BLOCKTECH approximately 5,50-7,00 lt of water should be used.
Application
Spread the mortar onto the substrate with notched trowel of which notch size is 10x10x10 mm. While laying the blocks,
vertical and horizontal joints should have maximum 3 mm width and fill them completely with.
Consumption
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1013 BLOCKTECH application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in adhesive mortars are a! ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1014 REFLEX
BYK 1014 REFLEX is cement based, polymer modified, one component, fiber additive ready to use thick repair mortar. In compliance with EN 1504-3 /R1
EN 1504-3 /R1
Fields of Application
• Superficial repair and correction of concrete construction elements,
• Repairing and plastering of walls and ceilings,
• Used in surface repair before ceramic and porcelain application.
Advantages
• Mixed with water, easy to apply,
• Applicable to all concrete surfaces,
• Do not shrink
• Provides high adherence to concrete and plastered surfaces,
• Provides smooth surface finish,
• Resistant to thaw and frost,
• Used in inside and outside, horizontal and vertical applications.
Preparation of the Substrate
Preparation of the Substrate
The surfaces to be repaired must be robust and free from all kinds of dust and dirt. Surfaces requiring deep repair should be
repaired with BYK 1014 REFLEX repair mortar. The surface should be slightly moistened with water.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1014 REFLEX is slowly
added to the water and mixed with an electric mixer of 400-600 rpm and suitable mixer for about 3 minutes until it becomes
homogeneous. There should be no lumps in the material. After the material has been rested for 3 minutes, it is mixed again for 1
minute and ready for application.
Mixing Ratio
For 25 kg bag of BYK 1014 REFLEX approximately 6,00-7,00 lt of water should be used.
Package
25 kg Kraft bag
Consumption
In order to obtain 1 mm thickness, 1,5 kg/m2 powder material must be used.
Application
The prepared mixture is applied with a single layer of trowel at a thickness of 1-5 mm. After the mortar draws itself, the
surface is sprinkled with water and the surface is smoothened with sponge, wood or steel melee. In applications performed
in extremely hot, dry and windy environments, protection against rapid evaporation should be made for 48 hours with wet
scrub cloth or curing materials.
Cleaning of Application Tools
Tools and equipment used after the application should be cleaned with water.
Watch Points
• BYK 1014 REFLEX application, suitable temperatures should be expected if ambient and surface temperature are below + 5° C or above + 35° C. It should not be applied in extremely hot, rainy or very windy weather.
• It should be protected from sun, rain, wind and frost for the first 24 hours in outdoor applications.
• Working and reaction times in mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration, which extends the working time. For the material to complete the course, the floor temperature and ambient
temperature must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1015 WATERTECH
BYK 1015 WATERTECH, is cement and polymer based, two component, fully elastic waterproofing material designed for all
kinds of reinforced concrete surface and cement based screeds.
Fields of Application
• Inside - outdoors, on the positive side where the water comes vertically and horizontally,
• In water and balance tanks
• Olympic swimming pools and thermal pools,
• In cold weather storages walls and upholstery,
• Bathroom, balcony, kitchen etc. in all wet volumes,
• On terraces (with the condition to be covered)
• On foundation, curtain and retaining walls,
• In flowerpot insulation,
• Used in drinking water tanks
Preparation of the Substrate
The surface to be applied must be solid, free from any oil, grease, rust, para# n, paint, bitumen residues that will prevent
adhesion to the surface and all loose parts must be cleaned. Iron and wooden wedges on the surface should be removed and
active water leaks, if any, should be repaired with BYK 1102 PLUG and the gaps. Uneven surfaces and corner edges (chamfer
making at least 4 cm) should be repaired with BYK 1014 REPAIR repair mortars. The surface should be wetted before
application. If waterproofing material loses its water immediately and takes a matte appearance during application, it is
understood that the surface is not wetted su# ciently or the product dries quickly due to weather conditions. In cases where
such air is hot or the materials are in the wind, the water through 10% of BYK 1015 WATERTECH B component is added to the
mixed material for the first layer.
Mixing
The 1/2 of the BYK 1015 WATERTECH B component is poured into a clean mixing bowl. While slowly adding BYK 1015
WATERTECH component A,it is mixed an electric mixer of 400-600 rpm and the appropriate mixer. The mixture is mixed for
about 3 minutes. Then mixture, which has the consistency of paste, is rested for 1 minutes, the remaining BYK 1015 WATERTECH B
component is added and mixed for 1 minutes to prepare for application.
Application
The prepared BYK 1015 WATERTECH mixture is applied in two or three layers with the help of an insulating brush. The brush
application on each layer should be perpendicular to each other. Waiting time between layers varies according to ambient
conditions.
Consumption
1st layer; 1,00 kg/m2
2nd layer; 1,00 kg/m2
3rd layer; 1,00 kg/m2
Package
30 kg set / A component 20 kg Kraft bag. B component 10 kg Bucket.
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In the application of BYK 1015 WATERTECH, if the ambient and surface temperature is below +5°C or above
• +35°C, suitable temperatures should be expected. Application should not be made in extremely hot, rainy or windy
weather. BYK 1015 WATERTECH applied at +23°C gains mechanical strength after 2 days, becomes waterproof after 7 days
and reaches its final strength after 28 days.
• In exterior surface applications, the surface should be protected from sun, wind, rain or frost for the first 24 hours.
• Working and reaction times of cement and acrylic based systems are a! ected by ambient and ground temperature and
relative humidity in the air. At low temperatures, the reaction slows down, which increases pot life and working time. High
temperatures accelerate the reaction and the times mentioned above are shortened accordingly.
• In order for the material to complete its curing, the floor temperature and ambient temperature to be applied must not fall
below the minimum allowed value. In application, wet film thickness should not exceed 1,30 mm in one layer.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at + 5 ° C to + 30 ° C, room temperature, away from
direct sunlight. BYK 1015 WATERTECH B component freezes at temperatures below 0 ° C. Opened packages should be kept
tightly closed in suitable storage conditions and used within one week.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1016 PLASTER
BYK 1016 PLASTER is a cement and polymer based, fiber reinforced thin ready-to-use plaster.
Fields of Application
• It is used for plastering the surfaces of brick, briquette wall, bims block, concrete, gas concrete, aerated concrete and
ceiling (provided that BYK 1101 PRIMER is used on concrete surfaces) indoors and outdoors.
Advantages
• Mixed only with water.Long workable time,
• Easy and fast application with machine,
• Provides cost advantage and control simplicity.
• Provides high adherence and strength to every point of the surface thanks to its homogenous structure,
• Provides smooth surface for final coat.
Preparation of the Substrate
The surfaces to be plastered should be cleaned in situations that adversely a" ect adherence of mold oil, loose particles, dust,
and plaster, and cracks and holes in the surface should be repaired with appropriate BYK 1014 REPAIR series repair mortars. In
hot weather conditions, surfaces should be absolutely moistened with water. Polished gross concrete surfaces should be applied
with BYK 1101 PRIMER liner coral roll before application in concrete ceilings and walls. Apply plaster after 24 hours.
Mixing
The appropriate amount of water indicated on the package is poured into a clean mixing bowl. When BYK 1016 PLASTER is added
slowly into the water, it is mixed for 3 minutes until it is homogenous with an electric mixer of 400 - 600 rpm. No lumps in the
material should be allowed. After the material is rested for 3 minutes, it is mixed again for 1 minute and ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1016 PLASTER approximately 5,00 – 7,00 lt of water should be used.
Application
Application thickness should be between 1 mm and 2.5 mm on one layer. If the thickness is more than 2.5 mm, the second
coat is applied again with a thickness of 2.5 mm after taking the first coat socket. In order to prevent the risk of cracking, 2
layers of application should be done. Mortar prepared is applied with mortar board or trowel. Correct with aluminium gauge.
After this process, when the plaster is su# ciently hardened, the surface is smoothed and the application is completed with a
damp sponge.
Consumption
Approximately 2 -3 kg / m2 powder product should be used to obtain 1 mm thickness.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1016 PLASTER application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in plaster mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK +1016 SILICONEPLAST
BYK 1016+ SILICONEPLAST cement and polymer based, ready to use silicone thin plaster.
Fields of Application
• It is used for plastering the surfaces of brick, briquette wall, bims block, concrete, gas concrete, aerated concrete and
ceiling (provided that BYK 1101 PRIMER is used on concrete surfaces) indoors and outdoors.
Advantages
• Mixed only with water. Long workable time,
• Easy and fast application with machine,
• Provides cost advantage and control simplicity.
• Provides high adherence and strength to every point of the surface thanks to its homogenous structure,
• Provides smooth surface for final coat.
Preparation of the Substrate
The surfaces to be plastered should be cleaned in situations that adversely a" ect adherence of mold oil, loose particles, dust,
and plaster, and cracks and holes in the surface should be repaired with appropriate BYK 1014 REPAIR series repair mortars. In
hot weather conditions, surfaces should be absolutely moistened with water. Polished gross concrete surfaces should be applied
with BYK 1101 PRIMER liner coral roll before application in concrete ceilings and walls. Apply plaster after 24 hours.
Mixing
The appropriate amount of water indicated on the package is poured into a clean mixing bowl. When BYK 1016+ SILICONEPLAST
is added slowly into the water, it is mixed for 3 minutes until it is homogenous with an electric mixer of 400 - 600 rpm. No lumps
in the material should be allowed. After the material is rested for 3 minutes, it is mixed again for 1 minute and ready for
application.
Mixing Ratio
For 20 kg/1 bag of BYK 1016+ SILICONEPLAST approximately 5,50 – 6,50 lt of water should be used.
Application
Application thickness should be between 1 mm and 2.5 mm on one layer. If the thickness is more than 2.5 mm, the second
coat is applied again with a thickness of 2.5 mm after taking the first coat socket. In order to prevent the risk of cracking, 2
layers of application should be done. Mortar prepared is applied with mortar board or trowel. Correct with aluminium gauge.
After this process, when the plaster is su# ciently hardened, the surface is smoothed and the application is completed with a
damp sponge.
Consumption
Approximately 2-3 kg / m2 powder product should be used to obtain 1 mm thickness.
Package
20 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1016+ SILICONEPLAST application, suitable temperatures should be expected if ambient and surface temperature
are below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in plaster mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1017 DECOPLAST
BYK 1017 DECOPLAST is a cement and polymer based, water repellent, silicone added decorative plaster.
Fields of Application
• Indoor and outdoor,
• As decorative coating on thermal insulation plaster on building facades,
• It is used on mineral based surfaces such as concrete and plaster.
Advantages
• Mixed only with water.
• Does not slip,
• Provides excellent adhesion,
• It has high mechanical resistance against external factors.
• It can be painted in desired color.
• Resistant to freezing-thawing.
Preparation of the Substrate
The surface of the thermal insulation plate to be applied must be dust free and free from debris. Also, the mechanical dicing
process has to be completed.
Mixing
The appropriate amount of water described on the package is poured into a clean mixing container. BYK 1017 DECOPLAST bag is
opened and added slowly into the water. It is mixed for about 3 minutes until it is homogenous with 400 - 600 rpm mixing drill.
There should be no lumps in the material. After the material is rested for about 3 minutes, it is mixed again for 1 minute and made
ready for application.
Mixing Ratio
For 25 kg/1 bag of BYK 1017 DECOPLAST approximately 5,50 – 7,00 lt of water should be used.
Application
EPS,XPS and thermal insulation board after adhering with BYK 1011 BOARDFLEX, apply one layer of plaster with BYK 1012
BOARDPLAST on the mechanically anchored thermal insulation panels, then plaster net are properly buried in the first layer
of plaster. After the first coat of plaster, finish with the second layer plaster is application. BYK 1017 DECOPLAST mixture is
applied to the surface with a steel trowel on the plaster. Desired pattern is given with the aid of trowel.
Consumption
Approximately 2-3 kg / m2 powder product should be used to obtain 1 mm thickness.
Package
25 kg Kraft bag
Cleaning of Application Tools
Tools and equipment used after application should be cleaned with water.
Watch Points
• In BYK 1017 DECOPLAST application, suitable temperatures should be expected if ambient and surface temperature are
below + 5 ° C or above + 35 ° C. It should not be applied in extremely hot, rainy or very windy weather.
• In outdoor applications, for the first 24 hours should be protected from sun, rain, wind and freezing.
• Working and reaction times in plaster mortars are a" ected by air temperature, humidity and floor temperatures.
• High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures slow down
hydration and thus extend the working time. For the material to be completed, the floor temperature and ambient
temperature to be applied must not fall below the minimum permissible temperature.
Shelf Life
Shelf life is 12 months from the date of production when stored properly at +5 oC to +30 oC at room temperature, away from
direct sunlight. Opened packages should be consumed within 1 week by closing the mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e" ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a" ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1018 LEVELINGSCREED
BYK 1018 LEVELINGSCREED is cement based, auto-leveliselfng, applicable between 3 – 10 mm thickness, ready to use under coating leveling screed.
Fields of Application
• Hospitals,
• Magazines,
• School and Administration O! ces,
• Hotels,
• Apartments,
• Grocery Stores,
• Shopping Malls,
• Leveling of rough and uneven surfaces and removal of the irregularities,
• In the leveling of the screeds with bad surface before bonding of ceramic, marble, natural stone, parquet, carpet and PVC
coatings
Advantages
• Can be applied with pomp.
• Provides fast and easy application.
• Economic.
• Mixed only with water.
Surface Quality
The concrete sub-surfaces to be applied must have a strong and su! cient compressive strength (minimum 25 N / mm2), tensile
strength of at least 1,5 N / mm2, maximum humidity of 4%, floor temperature minimum + 8 °C. Also, the dew point of the floor
should be over + 3 °C. The bottom surface must be clean, dry and free of any foreign objects such as dirt, oil, grease, coating and
surface curing materials.
Preparation of the Substrate
The concrete sub-surfaces to be applied should be prepared in such a way that it can remove the cement slurry by using
abrasive equipment (Shot Blasting, milling, diamond, etc.) to obtain an open-pored surface. Weak concrete parts should be
removed from the surface, small gaps, holes should be made completely open. The dust must be cleaned with the help of
industrial vacuum cleaner.
Mixing
Pour the amount of water indicated on the package into a clean mixing bowl. Slowly add the BYK 1018 LEVELINGSCREED into
the water and stir for 3 minutes until you get a homogenous mixture with the electric mixer and the appropriate mixing tip.
Material should not be allowed to clump at the bottom of the bucket and these pellets should be distributed. After waiting for
about 2 minutes, stir for another 1 minute to make it ready for application.
Mixing Rates
For 25 kg/1 bag of BYK 1018 LEVELINGSCREED approximately 5,00±0,25 lt of water should be used.
Application
Primer
BYK 1018 LEVELINGSCREED should be primed to increase the adherence of the leveling screed to the floor, reduce the air
bubbles to form, and to prevent the liquid from being absorbed by the floor. Surface properties should be examined in the
selection of primer and time requirement should be calculated. Depending on the requirement, the selected BYK 1104
PRIMERA primer is mixed with water in a ratio of 1/1 and applied by brush or roller. Apply the 2nd coat on very absorbent
surfaces. BYK 1018 LEVELINGSCREED application can be started after primer drying.
Coating
BYK 1018 LEVELINGSCREED is poured on the surface, applied with a suitable trowel or comb. When the coating reaches the
appropriate consistency, apply the hedgehog roller and remove the dragged air. If the hedgehog roll application is delayed,
traces of the hedgehog roller may remain on the surface.
Cleaning of the Tools
After application, the tools and equipment used must be cleaned with water. BYK 1018 LEVELINGSCREED can only be
removed from the surface mechanically after curing.
Consumption
Use 1.70 kg / m2 BYK 1018 LEVELINGSCREED to achieve 1 mm thickness.
Package
25 kg Kraft bag
Watch Points
• BYK 1018 LEVELINGSCREED application, if the ambient and surface temperature is below + 5 ° C or above + 35 ° C, the
appropriate temperatures should be waited.
• Do not apply in extremely hot, rainy or windy weather.
• The materials to be used in the area to be applied should be brought and stored 1-2 days in advance and provided to adapt
to the environmental conditions.
• It should be ensured that the ambient and ground temperature should be increased with the heaters in the applications to
be done in extremely cold weather conditions and it should be conditioned at + 20 ° C - + 25 ° C in the materials to be used
and made ready for application.
• The working and reaction times of cement based systems are a# ected by the ambient and ground temperatures and the
relative humidity in the air. At low temperatures, the reaction slows down, extending the lifetime of the pan (container) and
the working time. High temperatures accelerate the reaction and the times mentioned above are shortened accordingly.
• In order for the material to cure, the ambient and floor temperatures should not fall below the minimum permissible
temperature. After mixing, the material should be rested and then mixed again.
• After the application of BYK 1018 LEVELINGSCREED, it is necessary to wait at least 3 days for another coating.
Shelf Life
12 months from date of manufacture under appropriate storage conditions. Opened packages should be consumed within 1
week by closing their mouths.
Storage
Store in unopened original packaging in a cool and dry place protected from frost. For short-term storage, a maximum of 2
pallets should be placed on top of each other and should be shipped with first in first out. For long-term storage, pallets
should not be stacked on top of each other.
Safety Precautions
It is dangerous to approach the storage and application areas with fire. Storage and application areas should be ventilated.
Work clothing, protective gloves, goggles, masks must be used during the application. In case of contact with skin and eyes,
do not contact with skin and eyes. In case of contact, wash immediately with plenty of water and soap and seek medical
advice immediately if swallowed. Food and beverages should not be introduced into the application areas. It should be stored
out of reach of children.Please refer to the Material Safety Data Sheet for detailed information.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical knowledge.
BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results that may
occur because the product is used other than advised and/or out of instructions regarding the place and the method of use.
This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1019 TECHNICHARD
BYK 1019 TECHNICHARD is a one component, colored, ready to use surface hardener which is consisting cement, specially selected corundum aggregate pigment and additives, and applied by spraying powdered form on freshly screed concrete and screed surfaces.
Fields of Application
• Indoors and outdoors,
• In depots and hangars,
• In open and closed car parks,
• In shopping malls and public areas,
• Factories and workshops.
Advantages
• Mixed Easy to apply,
• The applied surface is 2 to 4 times stronger than the normal concrete surface,
• Thanks to the modified polymers in it, it takes the water of the laying concrete to form a monolithic structure with concrete
after it is polished.
• Prevent surface dusting,
• Colour options available,
• It is easier to clean than normal concrete surface,
• Resistant to frost-thaw e! ect.
Preparation of the Substrate
Compression Strength of the application concrete must be at least 25 N/mm2 (C 25). To obtain the best result, the concrete
slump values should be between 75 and 100 mm. The concrete must be adequately cemented (300 - 350 kg / m3) and the floor
thickness must be at least 15 cm. Air entrained concrete is not suitable surfaces for applying surface hardener.
Primer
BYK 1103 SBR should be applied as a primer on roughened concrete surface before casting to ensure adherence
between old concrete and screed in monolithic screed applications. In floating screed applications, polyethylene cover should be
laid on old concrete to prevent sticking of screed concrete to old concrete.
Concrete Casting
In accordance with the project, molds should be placed according to the designated areas. Prior to concrete casting, BYK 1019
TECHNICHARD bags should be placed on the main edges in such a way as to meet the prescribed consumption. The screeds
BYK 1019 TECHNICHARD to be applied must be over 7 cm thick, water / cement ratio over 0.45 and concrete grade at least
(C25). Concrete should be compacted using vibrating gauges while concrete is cast between the anodes.Before the water comes
out of the concrete surface, the necessary corrections should be made using the control gauge and wooden trowel. Water
coming to the concrete surface should be swept with a wooden screed with long sleeves.
Surface Hardener Application
BYK 1019 TECHNICHARD should be arranged in the amount to be used in the anode. Before the application of the spread,
concrete with an approximately 5 x 5 cm triangular cross section along the joints at the anode edges should be removed with
a trowel. Instead of concrete BYK 1019 TECHNICHARD should be applied with trowel, which is made into mortar with very
little water. This will prevent the joint edges from breaking under load BYK 1019 TECHNICHARD should not be sprinkled on
long distances when applied in order not to dissolve aggregates. According to the weather and weather conditions, the
spreading process should be carried out after reaching to a depth of 0,75 - 1,0 cm when the concrete is cured up to the
footprint.Material should not be poured on the anode as a heap, sprinkled as homogeneously as possible. At the first stage,
2/3 of the total consumption should be spread on the concrete surface, spread by the pull-o! or spread by machine. Moisture
(color change) of the spreading material should be expected by taking the water of the concrete and the surface leveling
should be done with the concrete by making the disk burnishing (helicopter tray burnishing). Then the remaining material
should be spread on the concrete surface as in the first application and the same operations should be repeated. When the
disc is being polished, the surface material that has spilled onto the previously spilled anode should be cleaned with a spatula
continuously. Otherwise, the elevation di! erence between the two anodes and the bad joint image will appear. After a rough
finish, a thin curtain must be passed. Thin finishing is carried out with a knife. The knife luster should be done until the desired
gloss is achieved.After the application of the surface hardener is finished, surface curing material should be applied in order to
prevent cracks in the shrinkage and to ensure non-dustiness. Thus, BYK 1019 TECHNICHARD achieves the desired maximum
performance. Cure application must be done in summer and winter. For suitable curing materials BYK Binyapı Co. should be
consulted.After the concrete hardens to strength, the anode joints should be cut at least 4 mm wide and joints should be
formed. The joints formed must be filled with PU mastics in order to avoid any adverse e! ects such as fracture and dusting
caused by joints. The application of the surface hardener is carried out with the quality and type of the concrete to be applied
and the timings vary according to the weather and ambient conditions. Application speed increases in hot weather,
application rate decreases in cold weather. When applying, attention should be paid to the steps of concrete setting.
Cleaning of the Toolsr
Tools and equipment used after the application should be cleaned with water. BYK 1019 TECHNICHARD can only be
mechanically cleaned from the surface after hardening.
Consumption
Depending on the intended use and tra# c load, it should not be used less than 4 - 8 kg/m2, and in light colored applications
7 kg/m2.
Package
25 kg Kraft bag
Shelf Life
The shelf life is 12 months from the date of production under suitable storage conditions (+5oC ile +30oC). Opened products
must be used within 1 week.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’ basis.
Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the Occupational
Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture should not come
into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of water and soap; in
case of swallowing, a physician should be consulted immediately. No food or beverages should be brought to the application
area. The product should be stored and kept out of reach of children. For detailed information please consult the Material Safety Data Sheet.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical knowledge.
BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results that may
occur because the product is used other than advised and/or out of instructions regarding the place and the method of use.
This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1101 PRIMER
BYK 1101 PRIMER mineral-filled polymer dispersion based primer used before application of cement based and gypsum based plaster to smooth surfaces. Plaster-based cement surfaces are reacted chemical with the surfaces and separated from the surface over time. It is an excellent primer designed to cut the direct contacts and form a holding surface.
Fields of Application
• Indoor and outdoor, it is used as a primer before application to gross concrete surfaces of plaster and cement based
plaster.
• Used as a primer before application of plaster and cement based plasters in vertical and ceilings.
• It is used in ceramic application on ceramic.
Advantages
• Easy to apply,
• Provide excellent adherence.
• Avoids rapid absorption of the water of plaster to be applied. Thus, it prevents sudden drying cracks and increases
working time
Preparation of the Substrate
Surfaces such as concrete and plaster must have finished their strength and be free from any impurities. If the surface is very
dusty, it should be washed with water or thoroughly cleaned with a wet sponge. All weak parts should be scraped o! from the
surface and clean surface should be obtained.
Mixing
BYK 1101 PRIMER should be thoroughly mixed with an electric mixer at 400-600 rpm before use.
Mixing Ratio
BYK 1101 PRIMER should be thoroughly mixed with an electric mixer at 400-600 rpm before use.
Application
BYK 1101 PRIMER is mixed and applied with coral roller after getting a homogeneous appearance. The consistency should
be adjusted according to the surface condition. The consumption should be increased on surfaces with a high risk of
adhesion
Consumption
According to the surface condition it is recommended to use between 150- 250 gr / m2.
Package
10kg – 25kg plastic bucket
Cleaning of Tools
Used tools and equipment must be cleaned carefully with water. BYK 1101 PRIMER can only be removed by mechanical
means.
Watch Point
• In BYK 1101 PRIMER application, if the ambient and surface temperature is below +5°C or above +35°C, suitable
temperatures should be expected. In outdoor applications, the application should be protected from sun, rain, wind and
frost first 24 hours. Getting dirty of primer must be prevented during and after the application.
Shelf Life
When stored properly at room temperature, away from direct sunlight, between +5°C and +30°C, shelf life is 12 months
from the date of production. BYK 1101 PRIMER freezes at temperatures below 0°C. Opened packages should be consumed
within 1 week by closing their mouths.
Storage
The product should be stored in its original package, in a cool and dry place protected from frost. For short term storage,
maximum 2 palettes should be placed on top of each other and the shipment should be made on a ‘first come, first go’
basis. Palettes should not be placed on top of each other during long term storage.
Health and Safety Precautions
It is dangerous to approach the application sites with fire. Fresh air should be circulated in the storage and the application
sites. During the application, a protective apparel, protective gloves, goggles and masks which comply with the
Occupational Health and Safety Rules should be used. Due to the irritation e! ect of the uncured materials, the mixture
should not come into contact with skin and eyes; in case of a contact, the a! ected area should be washed with plenty of
water and soap; in case of swallowing, a physician should be consulted immediately. No food or beverages should be
brought to the application area. The product should be stored and kept out of reach of children.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1102 PLUG
BYK 1102 PLUG is a mortar containing special mineral fillers and binders, which can clog active water leaks suddenly, can
be used within 1-2 minutes, completes full drying within 3-4 minutes, is used for insulation and repair purposes.
Fields of Application
• Foundations,
• Basement Curtain Walls,
• Elevator Shafts,
• Water Depots, reservoirs ,
• Plugging cavities with pressured or non-pressured water leaks,
• Tunnels, underground structures
Advantages
• Ready to use,
• Can be applied either in powder form or mixing with water,
• Cures fast,
• Plugs the leaks by fats curing feature,
• Waterproofing materials can be applied on after 10-15 minutes of,
• Adheres perfectly to the applied,
• Does not contain chloride, does not damage the reinforcement
Preparation of the Substrate
The surfaces to be repaired must be sound and free from all kinds of dust, oil and residues. Cold joints should be opened in a
conical manner with a depth of at least 20 mm in depth and width.
Mixing
The average 3 unit scale BYK 1102 PLUG is mixed by adding 1 unit of water.
1.68 lt of water should be added to the 7 kg package.
Application
As Mortar
Add the amount of material to be consumed in 1 minute into a clean application container and add water by paying
attention to the mixing ratio. It is mixed by hand using gloves with suitable protective properties. It is applied immediately
to leaks and holes. It is pressed by hand for a while.
As Powder
Take some material in your hand and press on the leak at once. Press with your fingers until you get the material socket.
Gloves should be used when doing this.
Package
7 kg plastic bucket
Consumption
Variable.
Cleaning of the Tools
Tools and equipment used after the application should be cleaned with water. BYK 1102 PLUG can only be mechanically
cleaned from the surface after hardening.
Watch Point
• If BYK 1102 PLUG is below + 5 ° C or above +35 ° C in application, suitable temperature environment should be provided
or expected.
• The BYK 1102 PLUG is equipped with a rising hydration heat finisher. For this reason, it should be kept moist for 10-15
minutes.
• Working and reaction times in special cementitious repair mortars are a! ected by air temperature, humidity and floor
temperatures. High temperatures accelerate hydration and the working time is shortened accordingly. Low temperatures
slow down hydration and thus extend the working time. For the material to be completed, the floor temperature and
ambient temperature to be applied must not fall below the minimum permissible temperature.
• In cold weather applications, the material must be conditioned in a hot environment at temperatures between + 20 ° C
and + 25 ° C and the mixture should be prepared with hot water to obtain the workability of the material.
Shelf Life
12 months after the production date under appropriate storing conditions. Opened products must be applied as soon as
possible.
Storage
Store in cool and dry conditions protected from frost. In short-term storage, maximum 2 palettes can be stored on top of
each other and delivery must be according to first in first out system. In long-term storage, do not store palettes on top of
each other.
Health and Safety Precautions
Work cloth, protective gloves, goggles and masks concordant with Work and Worker Health rules must be used during the
application. Due to irritant e! ects of the non-cured material, avoid contact to skin and eyes during storing and application.
If such a contact occurs, it must be washed by soap and plenty of water. Consult a physician urgently if swallowed. Food
and drink must be kept outside the application areas. Must be stored away from children. Please look at the Material Safety
Data Sheet for detailed information.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1103 SBR
BYK 1103 SBR is a copolymer dispersion based admixture used to increase adherence and water impermeability in cement based mortars and plasters.
Fields of Application
• As additive in repair mortars,
• Adherence in mortars prepared for repair of screeds and plasters,
• Increasing water impermeability by adherence of internal and external plasters of water tanks, pools, treatment plants
• In increasing the adherence of the surface before applying plaster, screed and ceramic,
Advantages
• Ready Strong and permanent bonding,
• Provides excellent adherence,
• High resistance against chemical and mechanical attacks,
• Improves shrinkage resistance of plaster and screed, minimizes cracking of screed and plaster,
• Increases resistance to freezing and thawing
Mixing
Preparation of Repair Mortars with 10 mm or less thickness
Mix 1 part of cement and 3 part of sand, the liquid mixture whic prepared by mixing 1 part of BYK 1103 SBR with 2 part of water,
and the previously prepared powder mixture are mixing.
Preparation of Repair Mortars with 10 mm or more thickness
Mix 1 part of cement and 3 part of sand, the liquid mixture whic prepared by mixing 1 part of BYK 1103 SBR with 3 part of water,
and the previously prepared powder mixture are mixing.
In Plaster Mortars
In suitable granulation, 1 m3 washed river sand and 350 kg cement are mixed. The mixture prepared by adding 120 lt water to
the 5 kg. BYK 1103 SBR is added to the previously prepared powder mixture to obtain a trowel consistency mortar. Surfaces
should be wetted 12 hours before the application and BYK 1103 SBR added mortar should be applied on wet / dry surface.
Primer in Screeds (PCC)
1 part cement and 3 parts stream sand are mixed, Add 1 part BYK 1103 SBR to 2 parts water and add the liquid mixture to the
powder mixture. The mixture brought to Boza consistency, It spreads.as 2 mm with brush on the floor.
Screed Preparation
In suitable granulation, at least 350 kg of cement is mixed into 1 m3 of washed river sand The liquid mixture prepared by adding
110 lt water in the 4 kg BYK 1103 SBR is added to the powder mixture prepared beforehand and brought to the proper
consistency of the gauge.
Application
Screed Applications
Pepared BYK 1103 SBR doped screed is appling on primer (PCC) which applied as 2 mm to the surface, first o! all (A) and
(B) compenants are mixing until their textures become like boza. Prepared materials is appling on wet surface as mm with
brush. fresh concrete should be applied before primer drying, shouldnt let primer going to be dry. A nex layer should be
applied on dried primer.
Coating Mortars
1 m3 aggregate in suitable granulation, 250 kg. cement and 3 kg. Mix the appropriate amount of water with BYK 1103 SBR.
Prepared additive mortar is laid. the bottom surfaces of the Paving stones to be laid with PCC.
Spreading Mortar
1 m3 sand in suitable granulation, 350 kg. cement, 10 kg. BYK 1103 SBR is mixed and water is added until boza consistency
is achieved. Appling on the surface which moistened before 12 hours, with spreading tool. Waiting until dry. Surface should
be wet when moving to application of plaster or ceramic.
Consumption
Variable
Packing
4 and 20 kg plastic drum
Shelf Life
12 months after the production date under appropriate storing conditions. Opened products must be applied as soon as
possible.
Storage
Store in cool and dry conditions protected from frost. In short-term storage, maximum 2 palettes can be stored on top of
each other and delivery must be according to first in first out system. In long-term storage, do not store palettes on top of
each other.
Health and Safety Precautions
Work cloth, protective gloves, goggles and masks concordant with Work and Worker Health rules must be used during the
application. Due to irritant e! ects of the non-cured material, avoid contact to skin and eyes during storing and application.
If such a contact occurs, it must be washed by soap and plenty of water. Consult a physician urgently if swallowed. Food
and drink must be kept outside the application areas. Must be stored away from children. Please look at the Material Safety
Data Sheet for detailed information.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
BYK 1104 PRIMERA
BYK 1104 PRIMERA is a polymer dispersion based, one component primer material developed for all absorbent and weak surfaces.
Fields of Application
• As To protection of the absorbent surfaces such as gypsum plaster, gypsum panel, plaster, chipboard from moisture in
inside and outside areas,
• To prevent cracks caused by sudden water absorption of the surface before applying gypsum plaster,
• To increase the adherence of the self-levelling screeds to the floor and to reduce air bubbles,
• In order to decrease the amount of dust by applied on the screed surface in carpet under-screed applications,
• Used as primer before wallpaper and paint applications
Advantages
• Extremely easy to apply.
• Increases adherence.
• Avoids rapid absorption of the surface water to be applied. Thus, prevents sudden drying cracks,
• Does not contain organic solvent.
• Protects from moisture.
• Solvent free and odorless.
• Can be used safely indoors
Surface preparation
The application surfaces must be free from all kinds of dirt. If the surface is very dusty, it should be washed with water or
thoroughly cleaned with a wet sponge. All weak parts should be scraped o! the surface and a solid and clean surface should be
obtained.
Mixing
BYK 1104 PRIMERA is mixed with an electric mixer of 400-600 rpm/minute, by adding the amount of water specified in the
application method, until a homogeneous mixture is obtained.
Application
BYK 1104 PRIMERA is poured on the cleaned and ready surface. The material is applied homogeneously to the surface by
brush or roller. Depending on the condition of the surface, the application density should be adjusted. Consumption should
be increased on surfaces with high adhesion risk. The formation of ponds should not be allowed on the surface.
In Gypsum Plaster Application
In 1st coat application, BYK 1104 PRIMERA is diluted with 1/2 water and applied by brush or roller.
In 2nd coat application, BYK 1104 PRIMERA is diluted with 1/1 water and applied by brush or roller.
In Floor Screed Application
BYK 1104 PRIMERA is diluted with 1/2 water and applied by brush or roller.
In 2nd coat application, BYK 1104 PRIMERA is applied by brush or roller without mixing with water.
Before Ceramic Adhesive Application, On Ceramic Bonding To Gypsum Board Or Plasterboard Surfaces
In 1st Coat Application BYK 1104 PRIMERA is diluted with 1/2 water and applied by brush or roller.
In 2nd coat application, BYK 1104 PRIMERA is applied by brush or roller without mixing with water.
As a Primer In Wallpaper And Paint Application
BYK 1104 PRIMERA is applied by brush or roller after diluting with 1/2 water.
Cleaning of the Tools
Tools and equipment used after the application should be cleaned with water. BYK 1104 PRIMERA can only be mechanically
cleaned from the surface after hardening.
Coverage
In gypsum plaster application; 100-250 gr/m2
In floor screed application; 100-250 gr/m2
For adhering ceramics to plasterboard surfaces; 125-250 gr/m2
As a primer in wallpaper and paint application; 75-150 gr/m2
Watch Points
In BYK 1104 PRIMERA application, if the ambient and surface temperature is below +5°C or above +35°C, suitable
temperatures should be expected. In outdoor applications, the application should be protected from sun, rain, wind and
frost first 24 hours. Getting dirty of primer must be prevented during and after the application. Scratch test can be done to
make sure the primer cured.
Packing
20 kg plastic can
Shelf Life
When stored properly at room temperature, away from direct sunlight, between +5°C and +30°C, shelf life is 12 months
from the date of production. BYK 1104 PRIMERA freezes at temperatures below 0°C. Opened packages should be
consumed within 1 week by closing their mouths.
Storage
Store in cool and dry conditions protected from frost. In short-term storage, maximum 2 palettes can be stored on top of
each other and delivery must be according to first in first out system. In long-term storage, do not store palettes on top of
each other.
Health and Safety Precautions
Work cloth, protective gloves, goggles and masks concordant with Work and Worker Health rules must be used during the
application. Due to irritant e! ects of the non-cured material, avoid contact to skin and eyes during storing and application.
If such a contact occurs, it must be washed by soap and plenty of water. Consult a physician urgently if swallowed. Food
and drink must be kept outside the application areas. Must be stored away from children. Please look at the Material Safety
Data Sheet for detailed information.
Disclaimer
The technical information given in this publication is based on the present state of our best scientific and practical
knowledge. BYK Binyapı Co. is only responsible for the quality of the product. BYK Binyapı Co. is not responsible for results
that may occur because the product is used other than advised and/or out of instructions regarding the place and the
method of use. This technical form is valid only till a new version is implemented and nullifies the old ones.
Koya Road Next To The Mansour Bank Erbil - Kurdistan Region - IRAQ
Mob: +964 750 492 8862
Mob: +964 751 517 1227
Mob: +964 750 362 7434
Mob: +964 750 369 6596
Opposite The Vehicle Inspection Station Kasnazan Erbil - Kurdistan Region - IRAQ
Mob: +964 750 492 8862
Mob: +964 751 517 1227
Mob: +964 750 362 7434
Mob: +964 750 369 6596
Çatalca Yolu Caddesi No:502 Büyükçekmece - İSTANBUL
Mob: +90 212 861 3534
Mob: +90 532 677 8790
Mob: +90 532 254 6923
